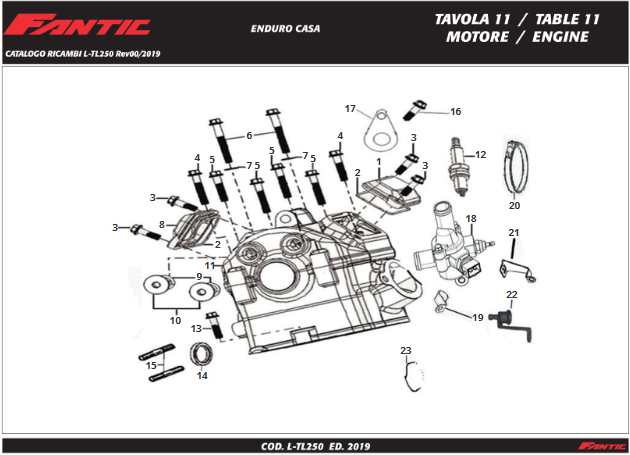

Culasse
.png)
1 - NC250-0001
COVER VALVE CHAMBER
3,84€ /unit
2 - NC250-0002
COVER VALVE CHAMBER SEALING
0,72€ /unit
2 - NC250-0002
COVER VALVE CHAMBER SEALING
0,72€ /unit
3 - NC250-0003
BOLT M6+ù25
0,24€ /unit
3 - NC250-0003
BOLT M6+ù25
0,24€ /unit
3 - NC250-0003
BOLT M6+ù25
0,24€ /unit
3 - NC250-0003
BOLT M6+ù25
0,24€ /unit
4 - NC250-0004
BOLT M6+ù35
0,24€ /unit
4 - NC250-0004
BOLT M6+ù35
0,24€ /unit
5 - NC250-0005
BOLT M6+ù30
0,24€ /unit
5 - NC250-0005
BOLT M6+ù30
0,24€ /unit
5 - NC250-0005
BOLT M6+ù30
0,24€ /unit
5 - NC250-0005
BOLT M6+ù30
0,24€ /unit
6 - NC250-0006
HEAD SCREW
0,48€ /unit
7 - NC250-0007
WASHER 6.5+ù1.5+ù12
0,48€ /unit
7 - NC250-0007
WASHER 6.5+ù1.5+ù12
0,48€ /unit
8 - NC250-0008
COVER VALVE CHAMBER
3,84€ /unit
9 - NC250-0009
O-RING 11.8+ù2.6
0,24€ /unit
10 - NC250-0010
CAP
0,96€ /unit
11 - NC250-0011
CYLINDER HEAD ASSY
235,68€ /unit
12 - 02054005
SPARK PLUG 125 LC STANDARD
19,92€ /unit
13 - NC250-0012
BOLT M6+ù25
0,24€ /unit
14 - NC250-0013
PACKING SILENCER
1,44€ /unit
15 - 04193005
BOLT
3,12€ /unit
16 - NC250-0015
BOLT M6+ù10
0,24€ /unit
17 - NC250-0016
OUTLET PIPE BAFFLE
0,48€ /unit
18 - NC250-0017
THERMOSTAT ASSY
54,96€ /unit
19 - NC250-0018
CLIP HIGH VOLTAGE WIRE
2,40€ /unit
20 - NC250-0019
CLAMP INLET PIPE
2,64€ /unit
21 - NC250-0020
AIR PRESSURE BRACKET
0,72€ /unit
22 - NC250-0021
INJECTOR BRACKET CAB 500
6,48€ /unit
23 - NC250-0022
SEAL RING OF INLET PIPE
0,96€ /unit
